Whole door options

Bi-folding door type 3-3-0
3 sections, All folding left
Master door right
Frame colour
Handle colour
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • External cill
    Locking cylinder

    Opens
    Vents
    Threshold
    Glazing
    Frame extenders
    PAS24 upgrade
    Total price £
    All prices include VAT
    Why buy from us   Best price

    Aluminium Bi-Fold Designer

    Width: 2000mm
    Height: 2100 mm

    Outside view

    Change dimensions at the measuring page.
    For other doors/windows just see the home page.
    Please select the glass or panel options for this pane.
    Guidance will appear automatically on the right.

    Glass type:  glass & panels
    Safety:
    Decoration:
    Georgian bars: x (horizontal x vertical)
    Important!
    Extenders do not add to the overall width/height of door frames.
    By choosing extenders the frame will be made slightly smaller, in order to keep the overall width/height including the extender the same as your measurements.
    Alternatively, if you wish to add an extender in addition to the overall width or height you measured, please choose the extender and leave a note at checkout.
    Please choose any extenders for the sides of your door frame:

    Top
    Left
    Right
    Bottom
    Click to choose your colour, or click on RAL to enter your desired RAL number.
    Disclaimer: We cannot guarantee to match existing colours.
    For a colour match, please email us with your address for a free swatch.

    White gloss RAL 9010 Anthracite grey matt RAL 7016 Anthracite grey with white inside Black matt RAL 9005 RAL colour - same both sides
    (delayed delivery)
    2 RAL colours, each at a side
    (delayed delivery)

    Guidance


    Helpful guidance will appear here when you click on any options on this page.


    Frame colours

    Aluminium flat profile without any sort of texture.

    Available in standard colours or your own RAL. Polyester powder-coated for durability to maintain a fresh appearance, year after year.

    Highly resistant to corrosion.
    Durable scratch resistant finish.

    Standard colours:

    White Gloss RAL 9910
    Black Matt RAL 9005
    Anthracite-grey Matt RAL 7016
    Anthracite-grey Matt RAL 7016 with White Gloss RAL 9910 internally

    Premium colours:
    You can chose your own RAL colour, or even 2 RAL colours. At checkout please enter Matt, Gloss, or Satin in the comments box.
    RAL colours will delay your order significantly.

    PAS 24 security


    Enhanced security PAS 24:2016 is the latest security standard that can only be achieved once a product has been tested to demonstrate enhanced protection against various types of attack. This ranges from shoulder barging and kicking to attempts to pick or damage the handle or lock. Intended to resist the levels and methods of attack experienced in Britain.

    Building Regulations compliant.

    Choosing PAS24 will set all the glass panes to Laminated glazing.


    Handle colours


    Door handles are available in white, polished chrome, anthracite-grey, black or brushed stainless steel.

    Shoot-bolt handles are the same colour.

    If you prefer a white handle inside with grey or black outside, please choose grey or black and leave a note at checkout.

    Please note: Hinges and the little pull handles on the hinges are always black to match the black rubber gaskets.


    Example of bi-fold door handles


    Open in or out


    A door can open in, into your home or out, away from your home, as viewed from outside.

    We recommend bi-fold doors to open outwards, saving space inside your home and improving weather resistance.

    Hinges and the little pull handles on the hinges are always black to match the black rubber gaskets.



    External aluminium cill

    Most doors require an external cill to drain water away correctly. If you already have a stone or tiled cill as part of the building you may not require a cill.

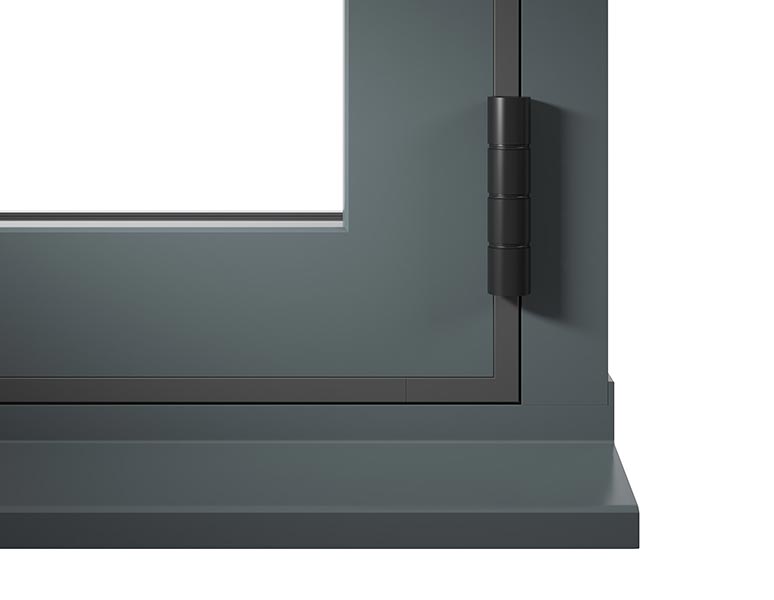

    Integrated cill
    An ideal situation, a 150mm cill and threshold all in one, at the same height as the normal threshold. Only available on Open-out doors. Recommended.

    Alternatively and for open-in doors there is a choice of 100mm stub cill (protrudes only 16mm), 150mm normal cill and 190mm long cill (for doors set further back into the brickwork).

    Please note: If a cill is chosen, the cill height of 16mm will be included within the overall height of the door.



    Integrated cill

    Glazing choices


    Advanced double glazing Argon filled with 1.2 glass u-rating.

     Thickness
    in mm
    Panes
    in mm
    u value
    W/mK²
    Toughened284+void+41.2
    Laminated28.86.8+void+41.2
    Acoustic28.86.8+void+41.2

    It is possible to supply 1.1 u-rated glass, at a slightly higher price, please contact us if you need it.

    We cannot use triple glazing on bi-fold doors due to the weight and thickness, making the folding difficult. If you need triple glazing, please use our French doors.

    Optionally Pilkington Optiphon™ Acoustic glazing for significantly better noise insulation.

    Acoustic glazing

    Pilkington Optiphon™ high quality acoustic laminated glass offers excellent noise reduction without reducing light transmittance and impact performance.

    Ideal for significantly reducing noise from road, rail or air traffic, factories or nightclubs.

    Noise is reflected back towards the source and also absorbed within the glass.

    The glass unit is made of a 6.8mm acoustic laminated outer pane, a 18mm Superspacer void and a 4mm inner KS pane.

    Being laminated it is also very secure and difficult to break into.

    The u-value is 1.2, the same as our superb A+ rated double glazing.

    Sound reduction Rw(C;Ctr) 41dB(-2; -6)

    Frame extenders

    20 and 40mm aluminium frame extenders.

    A frame extender increases the thickness of a door frame at a specified side. Great for properties with deep plaster, render or tiles over tiles.

    Some fitters buy extenders as a precaution, for example where the door opening has not been built yet. Extenders can be modified to accomodate inconsistent side walls.

    Extenders simply clip or slide on the door profile as you can see on the picture.


    Example of 20mm extender sliding

    Glass menu


    These are the glass options for the glass pane you just clicked on.

    For more guidance please click on the individual options.


    Glass types

    We supply clear glass and 19 designs of obscure privacy glass from Pilkington, including Satin.
    Each glass type has a privacy level from 0 (clear) to 6 (solid).

    Panels: Insulated MDF reinforced UPVC panels instead of glass.

    Clear - level 0

    Arctic - level 4

    Autumn - level 3

    Chantilly - level 2

    Charcoal-sticks - level 4

    Contora - level 4

    Cotswold - level 5

    Digital - level 3

    Everglade - level 5

    Flemish - level 2

    Florielle - level 4

    Mayflower - level 4

    Minster - level 2

    Oak - level 4

    Pelerine - level 5

    Satin-opal - level 5

    Stippolyte - level 4

    Sycamore - level 2

    Taffeta - level 3

    Warwick - level 1

    Solid panel - level 6

    Glass decoration

    For added decoration or for a traditional feel we have Georgian bars, Square lead or Diamond lead.

    Georgian bars Our Georgian bars are 18mm thick and are placed between the glass panes for ease of cleaning. We do not offer external Astragal bars due to unreliability as they are just taped on. We can instead supply a single horizontal or vertical extra bar. More information on the the glass menu pop-up.

    Square lead Our Square lead is traditional lead which is 9mm thick and is placed on both sides of the external pane of glass.

    Diamond lead Our Diamond lead is real 9mm thick lead on both sides of the external glass pane.

    Note: lead layouts are just a representation, the actual layout will be according to best practice.

    Note: For custom or special Georgian/lead layouts or for matches, please leave specific instructions as a note at checkout.

    Georgian Bars


    Our Georgian bars are 18mm thick and are fitted between the glass panes for easier cleaning. All Georgian bars are colour matched to your window colour to ensure the right look.

    Georgian bars example


    Instructions:

    Please choose your own number of horizontal and vertical Georgian squares, or leave it on automatic where the actual layout will be set by us according to best practice.

    Small adjustments to align the bars between panes will be done by us.

    For custom/special layouts please leave a note at checkout.


    Glass safety


    We supply 3 strengths of glass:

    Standard: Normal glass, which is dangerous when broken as it breaks in large sharp pieces. Not allowed for doors.

    Toughened: Specially treated to increase its strength and safety.
    If broken, toughened glass breaks into many small pieces therefore it's less likely to cause injury.

    Laminated: Our strongest glass, similar to a car's windscreen, has a laminated layer that keeps the glass together when broken, making it very difficult to break into. See the video below:



    Building regulations apply to glass safety.

    Thresholds

    Normal rebated threshold:
    A low profile threshold 30.5mm high to the bottom of the door sash (51.5mm including rebate). Plus 16mm for cill if required.

    Integrated cill threshold:
    Same as the normal threshold (52/30.5mm), but the cill is already integrated, eliminating the need for a separate cill. Open out only.
    Recommended.

    Note: On inward opening doors, please make sure there is sufficient clearance between the bottom of the door sash and the floor inside.

    We recommend bi-folds to open outwards with the integrated cill.


    Integrated threshold-cill

    Trickle vents

    New upgraded trickle vents, now built-in the top of the frame, no add-on extender required.

    Up to 3 trickle vents, complete with insect grill and manual open/close control.
    They help to control outside air flow to reduce condensation and mould.

    Equivalent Area 2667mm² per vent, so 8000mm² for 3.

    The top of the vent has a 9mm clearance to the very top of the frame. An extender may be needed if that is not sufficient for any plaster. Please see the diagram:


    New Building Regulations apply to ventilation.
